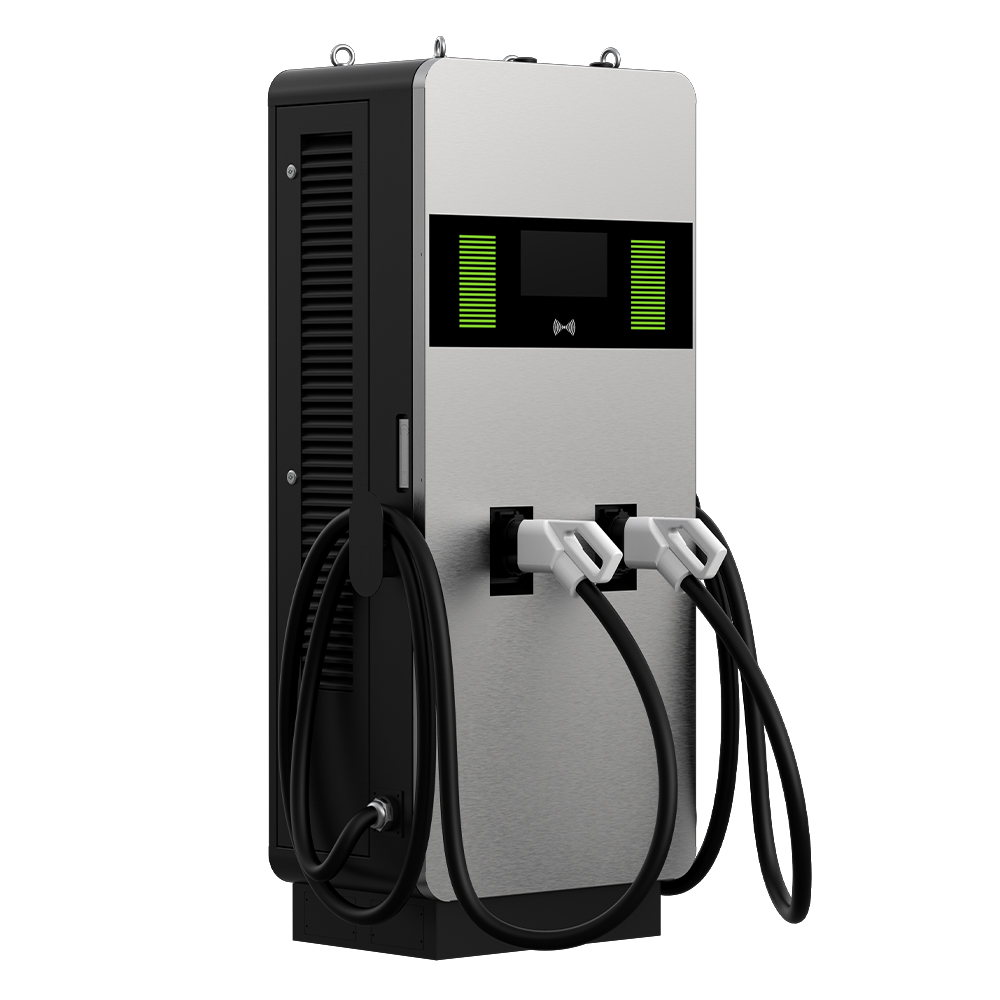

EVD100 180W DCFC Fast EV Charger – China Electric Vehicle Charger Supplier

Short Description:

JOINT EVD100 is a high-efficiency electric vehicle charger with the benefits of a high energy conversion rate, low pollution emissions, a rich fuel source, smart power sharing, and so on, with a 200-1000V broad range for all types of EVs.

The EVD100 180KW three-phase smart power charger is ETL and FCC certified. It can use Combo 1 (CCS1) or Combo 2 (CCS2) connection, allowing high power DC fast charging.


  • Display: 10 inch touch screen
  • User authentication: Plug & play/RFID/QR Code
  • EV Communication: DIN70121
  • Network: Ethernet,Wi-Fi,4G
  • Connectivity: OCPP1.6J
  • Operating Themperatuer: -30s℃~50℃
  • IP Level: IP54
  • Cooling: Forced Air
  • Altitude: ≤200M
  • Package Dimensions: 1070*800*2000mm
  • Product Dimensions: 920*780*1815mm
  • Product Detail


    Product Tags

    EVD100 DCFC EV charger.
    The joint EVD100 DC charger meets EU and NA standards.

    Product Specifications

    EVD100 EU - Joint EV Charger
    Model No. EVD100/60 EVD100/90 EVD100/120 EVD100/150 EVD100/180
    AC Input  Number of phase / Wire  3ph/L1 L2, L3.NPE
    Voltage 400V+10%
    Max. Input Amperage  90A  135A  180A  226A  270A
    Frequency  55H2±10Hz
    Power factor  PF20.98@Rated load
    Efficiency >96%
    DC Output Maxi Power  60KW  90KW  120KW  150KW  180KW
    Voltage Operating Range  200-1000V
    Max. Amperage  120A  200A  200A  200A  200A
    Charging Outlet CCS2 with 4m cable
    Display  10 inch touch screen
    User Authentication  Plug & Play /RFID /OR Code
    EV Communication  DIN70121
    Network  Ethernet, Wi-Fi, 4G
    Connectivity  OCPP1.6J
    Operating Temperature  -30C~ 50C
    IP Level IP54
    Cooling  Forced Air
    Operating noise level  s65dB
    Altitude  s2000M
    Product Dimensions  920*780*1815mm
    Package Dimensions  1070*800*2000mm
     EVD100 NA - Joint EV Charger
      Model No. EVD100/60 EVD700/90 EVD100/120 EVD100/150 EVD100/180
    AC Input Number of phase / Wire 3ph/L1, L2, L3, N,PE
    Voltage  480Vac(+10%,-15%)
    Max. Input Amperage  75A  113A  150A  188A  226A
    Frequency  50~60Hz
    Power factor  PF≥0.98@Rated load
    Efficiency  >96%
    DC Output Maxi Power  60KW 90KW  120KW  150KW  180KW
    Voltage Operating Range  200-1000V
    Max. Amperage  120A  200A  200A  200A  200A
    Charging Outlet CCS1 with 13ft cable
    Display 10 inch touch screen
    User Authentication Plug & Play /RFID /OR Code
    EV Communication DIN 70121
    Network Ethernet, LTE, Wi-Fi
    Connectivity OCPP1.6J
    Operating Temperature -22°F to 122°F
    IP Level NEMA 3R
    Cooling Forced Air
    Operating noise level ≤65dB
    Altitude ≤6561 ft
    Product Dimensions 36.2" x 30.7" x 71.5"
    Package Dimensions 42" x 31" x 79"


  • Previous:
  • Next:

  • What is ENERGY STAR® Certification?

    ENERGY STAR Certification (ES) is a voluntary energy-efficiency labeling program that helps consumers identify the most energy-efficient products. The ES label is awarded to products that consume less than the minimum power consumption standard, aiming to reduce overall energy consumption.

    Against the backdrop of increasing global energy scarcity, the ENERGY STAR program has been adopted by several countries, including Canada, Australia, New Zealand, Japan, and the European Union, boasting a market recognition rate of over 90% in North America. In summary, a product with ENERGY STAR certification symbolizes recognition by the US Department of Energy and the EPA, providing consumers with confidence in purchasing energy-saving products.

    What is IP and IK rating?

    Ingress Protection (IP) rating refers to a product’s waterproof and dustproof rating, indicating its ability to resist liquids and small solids. Impact Protection (IK) rating refers to the product’s shell’s level of impact protection, rated on a scale from 0 to 9.

    A higher number indicates stronger protection. The first number in the IP rating represents resistance to solids, and the second number represents protection against liquids. For example, IP (8X) denotes the highest level of dust protection, with internal equipment shielded from solid particles. The IK level represents protection against mechanical impact, with level 8 indicating the ability to withstand the impact of a 2.5kg hammer at a height of 15.7 inches.


    What is OCPP?

    OCPP (Open Charge Point Protocol) is a communication protocol used between the charging post and the central management system, acting as a translator facilitating barrier-free communication. The newly launched OCPP 2.0.1 enhances functions from OCPP 1.6, such as supporting ISO15118 and smart charging capabilities.


    what is ISO15118?

    ISO15118 is a communication protocol between the charging post and the electric vehicle, enabling quick identification for immediate charging. This mode, compared to the previous RFID card charging method, brings great convenience to new energy vehicle owners. In addition to supporting plug-and-play functionality, ISO15118 ensures safe communication and smart charging, guaranteeing the safety of electric vehicle charging and enhancing communication between electric vehicles and charging stations for the fastest, most efficient, and safest charging method.


    About warranty

    We offer a comprehensive warranty service with varying durations depending on the specific product. In the event of any quality issues arising within the stipulated warranty period, excluding instances caused by improper use, you can reach out to us at your convenience. Our dedicated team is committed to promptly addressing and resolving any concerns you may have.

    For further details on our warranty terms, please don’t hesitate to get in touch with us.
